Shoring system SBS-135

Characteristics

Flexible, complete, convenient, diverse formwork-beam system from integrated lightweight components.

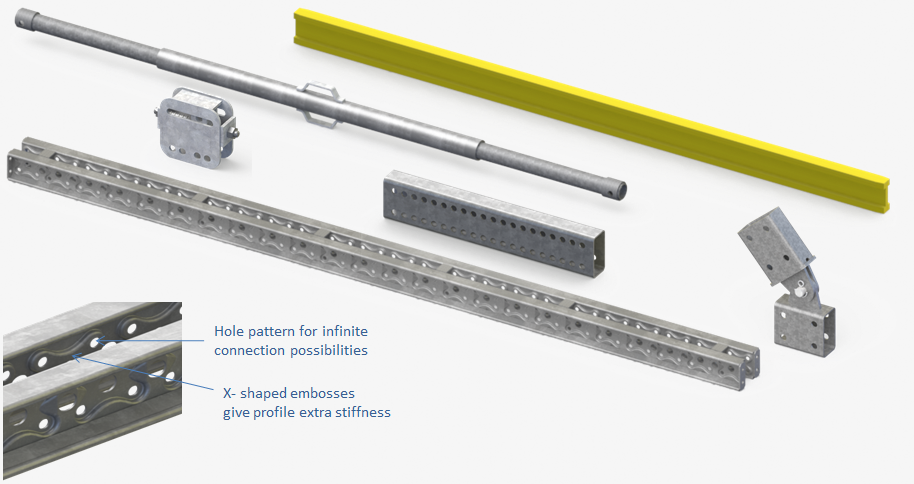

Its primary supports — optimised double steel U-profiles — have fitting holes along their entire length. In this way, utilising various lightweight components from Scafom-rux, any form of shuttering construction can be built in a single and very smooth operation.

Lightweight steel I-beams function as secondary supports. When positioned correctly, robust form decking is then secured on top. Typical of the easy versatility of SBS-135, scaffolding with H20 timber supports can also be installed.

Another clear advantage of SBS-135 is that separate segments of the shuttering system can be assembled on the ground. These so-called “prefab constructions” elements can then be placed in position by crane.

Product features SBS-135:

• Modular and flexible
• Optimal combination with widely accepted DURALOK scaffolding and shoring system
• Easy and fast assembly
• Lightweight components
• Can be erected as a prefab construction and placed in position by a crane, resulting in short changeover and less down time
• Solidly made system with fewer components susceptible to normal wear and tear
• Durable thanks to hot-dip galvanised steel and robust components

Exceptionally strong build quality and long life durability are key features of the SBS-135 shoring system.

The SBS-135 shoring system offers an easy structural and business fit of lightweight, integrated components that create optimum safety and other efficiencies for professional and better on-site project management.

Find more product documentation such as: Brochures, Certifications, Product Assortment Catalogues, Video Animations, Erection Manuals in the Download center.
